Product Characteristics

Model No.

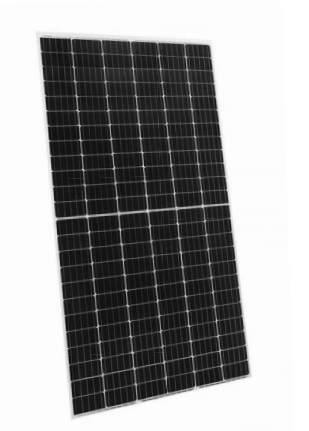

JKM380M-72H-BDVP
Module Effeciency 19.15%
Product Warranty 10 Years
Power Warranty 12 Years of 90% Output Power, 25 Years of 80.2% Output Power
Electrical Data at STC
STC NOCT
Maximum Power (Pmax)
380Wp 282Wp
Voltage at Maximum Power (Vmpp)
40.0V 36.4V
Current at Maximum Power (Impp)
9.50A 7.75A
Open Circuit Voltage (Voc)
Short Circuit Current (Isc)
8.08A
Panel Efficiency
19.15 %
Power Tolerance (Positive)
+3 %
Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Panel Dimension (H/W/D) 2000x992x6cm
Weight 28.5kg

Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C Thermal Ratings
Operating Temperature Range-40~85 °C Temperature Coefficient of Pmax-0.39 %/°C Temperature Coefficient of Voc-0.29 %/°CTemperature Coefficient of Isc0.048 %/°C Maximum Ratings
Maximum System Voltage 1.500 Volt

MAx Series Fuse Rating 20 A

Cell Type PERC

Cell Size 156×156 mm

Cell Number72

Glass Type Tempered, Anti-reflection Coating, High Transmittance, Low IronGlass Thickness Box Protection Class IP 67 Cable Crossection 4 mm

Download Manufacturer’s PDF Eagle PERC JKM360-380M-72H-BDVP-D1-EN



25% Albedo:  Maximum Power (Pmax)  Module Efficiency STC (%) 475Wp 23.94%
